Analizator fluorescencji

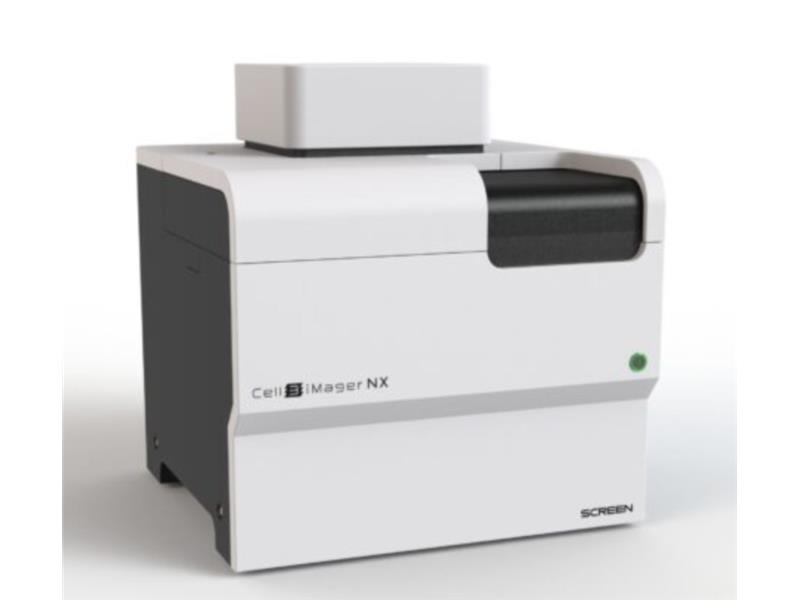

Product Name- Cell3iMager NX (CC-100)
Lighting unit Strobe White LED / Aperture stop (2 types),
phase difference, automatic shutter switching
Camera CMOS 12M pixel monochrome
Auto Focus Light source　Laser diode / Detection range -0.5mm to 3.5mm
Magnification Standard / 4x, 10x Objective lens
Option / 2x, 20x, 40x Objective lens, 10x, 20x phase difference
Supported Plate 6,12,24,48,96,384 well plate / 35,60,100 mm dish
Out put 8bit mono
Channel Bright field and 4 Colors of Fluorescence
Power Supply 100–240VAC / 190VA
Size / Weight W500 × D500 × H530 mm, 44 kg
Internal temperature 18℃ ± 2℃ ~40℃ ± 2℃ Adjustment in 1℃ increments
(without cooling mechanism)
Environment RT 18-28℃, Humidity 80% or Less, no condensation
Software Cell3iMager NX Specialized software（Standard included）
Control Computer DELL Precision 3660 Tower / DELL monitor E2222H
（Operation has been verified with our specified configuration）
